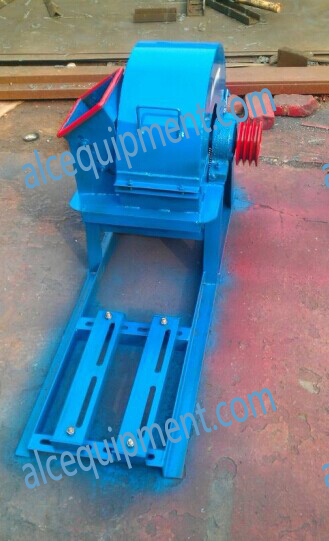

wood grinder
Wood grinder， wood crusher is a advanced machinery for sawdust which is used to produce edible fungus, or sawdust board raw material, man-made charcoal raw material, paper-making material.
Next:
This equipment is automatic grind wood into sawdust, feed the materials inlet, first through blade, cut into grind room, mill under the impaction of high speed revolved hammer and reaction of blade cutting, though sieves wind power produced by inner wind leaves sent to outlet or outlay fan send to outlet. The size of finished material is determined by adjust the length of blade and the diameter size of sieve, so as to satisfy different requirement.
2. Wood grinder / wood crusher Technical parameters
|
Type |
Weight(kg) |
Power(kw) |
Production(t/h) |
Blade(piece) |
|
420 |
160 |
7.5-11 |
0.4-0.8 |
4 |
|
500 |
240 |
18.5 |
0.6-1.5 |
4 |
|
600 |
380 |
30 |
0.8-2 |
4 |
|
700 |
520 |
37 |
1-2.5 |
6 |
|
900 |
650 |
55 |
1.5-3 |
6 |
|
1000 |
1100 |
75-7.5 |
2-3.5 |
8 |
|
1200 |
1600 |
90 |
3-5 |
9 |
|
1500 |
2400 |
110 |
3.5-6 |
12 |
