 3Z series spring cultivator is suitable for 25-80HP tractor, used for weeding, cultivating and ditching.

About Us
Product list
Product Detail

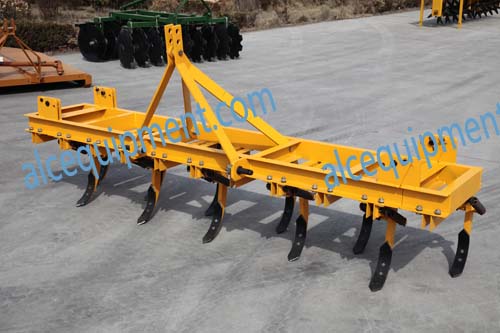

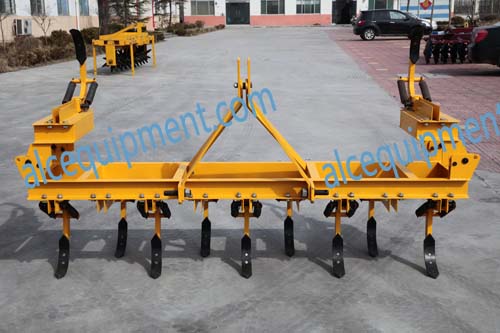

3Z series spring cultivator adpots double-spring tension device which enables the tines bounce automatically during operation when meet with obstacles and return to normal working quickly after over them, by which the tines are protected , It has advantages of row spacing to be conviently adjusted and the depth to be easily controled . The machine is suitable for cultivating and lossening soil in the corn , cotton and beans field.

Technical parameters of spring cultivator:

Name

Cultivator

Model

3Z-9

3Z-11

3Z-13

Working width (m)

2.1

2.5

3.0

Working depth (mm)

100-160

100-160

88-110

Qty. of tine (pcs)

9

11

13

Tine distance  (㎜)

250

250

250

Matched power (kw)

18.329.41

3340.4

44-59

Weight ()

240

275

390

Overall Dimension   L×W×H (mm)

950×2300×1040

950×2700×1040

950×3200×1040

Ground clearance  (mm)

260

Linkage

Three-point mounted
