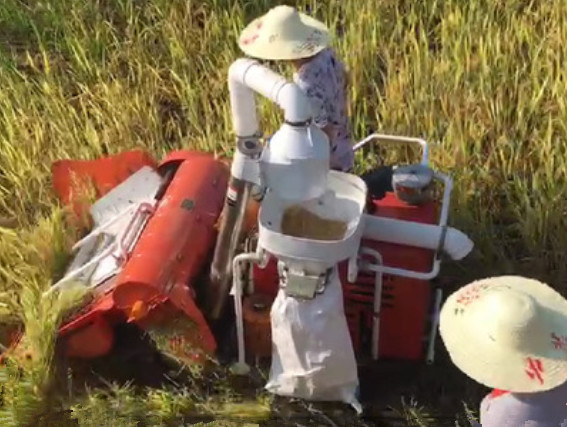

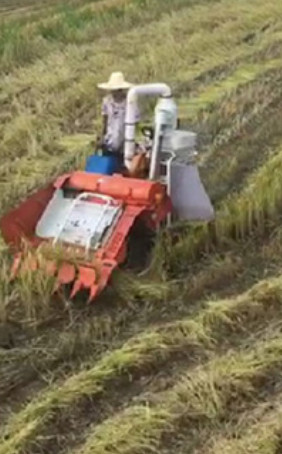

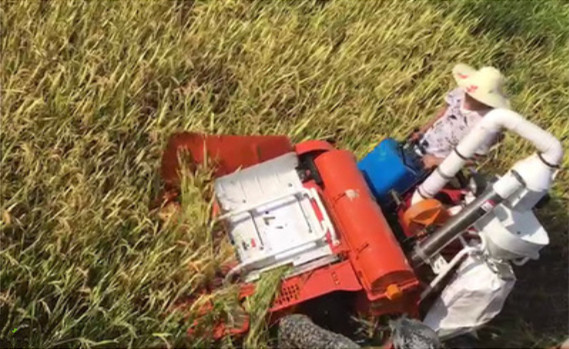

Head-feed combine harvester, Rice wheat harvester, combine harvester
Head feed combine harvester, wheat rice harvester, paddy combine harvester
|
Technical Parameters |
|||
|
Model |
4LNF-100 |
||
|
Type |
Head feeding ,Self-propelled |
||
|
Dimension (Operation) |
Length(mm) |
2510 |
|
|
Width(mm) |
1300 |
||
|
Height(mm) |
1690 |
||
|
Weight(kg) |
820 |
||
|
Engine |
Type |
ZR195DQC13, horizonal,water-cooled,single cylinder four-stroke direct-inject diesel |
|
|
Power(kw) |
8.82 |
||
|
RPM(r/min) |
2600 |
||
|
Displacement(L) |
0.638 |
||
|
Gear Box Model |
mechanical, forwards 3gears, reverse 1gears |
||
|
Walking Part |
Crawler belt width *ground connection lenght(mm) |
280*806 |
|
|
Center Distance(mm) |
550 |
||
|
Crawler belt average ground connection pressure(kgf/cm2) |
0.180 |
||
|
Walking Speed (m/s) |
Low speed 0-0.37, middel speed 0-0.51, high speed 0-0.77 |
||
|
Harvesting Part |
Cutting Width (mm) |
995 |
|
|
Crop Height(mm) |
650-1,300 |
||
|
Cutting rows |
4 |
||
|
Cutting Bar Lift |
Hydraulic Control |
||
|
Lodging adaptation |
clockwise:≤85%, anticlockwise :≤70 |
||
|
Threshing Part |
Thresher system |
upper comb thresher |
|
|
Comb thresher belt size(L*W)(mm) |
543*700 |
||
|
Comb threher belt rotated speed(r/min) |
1250 |
||
|
Start model |
start type |
hand crank |
|
|
battery |
12-36Ah |
||
|
Grain transportation |
spiral agitate |
||
|
Efficiency(ha/h) |
0.1-0.3 |
||
|
Crops |
Rice, wheat |
||
