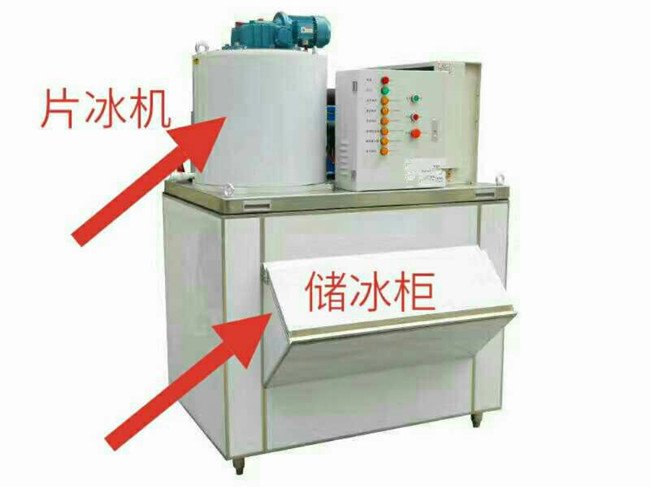

Ice Flake Making machine
Ice Flake making machine is widely used in aquatic produce, food, supermarket, dairy food, medicine, chemitry, vegetable transportation, seafood and so on
Quick Introduction of 1T/D Flake Ice Plant:
1).Flake Thickness : 1.5-2.0MM
2).Power supply: 3P/380V/50HZ
3).Fully Automatic and safe operation system
4). Daily capacity: 1tons flake ice in 24hrs
5). Cooling type: air cooled or water cooled
6). Refrigerant: R404A
Specification of Ice Flake maker:
|
Capacity |
1000kg/day |
|
Ice Flake making machine Size |
1220×760×900mm |
|
Storage ice Size |
1320×1050×1150mm |
|
Total machine weight |
380kg |
|
Ice thickness |
1.5-2mm |
|
Refrigerant gas |
R404A |
|
Necessory refrigerant capacity |
5.8kw |
|
Evaporating temperature |
-20℃ |
|
Condensing temperature |
+40℃ |
|
Designed ambient temperature |
+32℃ |
|
Designed inlet water temperature |
+20℃ |
|
Inlet water pressure |
0.1MP-0.4MP |
|
Install total power |
3.818kw |
|
Reducer power |
0.18kw |
|
Water pump power |
0.018kw |
|
Power |
380v/50hz/3phases |
|
Fan power |
0.19kw |
|
Cooling type |
Air-cooling |
|
Compressor |
Danfoss 3.43kw scroll compressor |
|
Water type |
Fresh water |
|
Water pipe size |
1/2" |
|
Noise |
≤60DB |
|
Control system |
Programmable logic controller,automatic control |
|
Storage ice volume |
500kg rice |
|
Spare part |

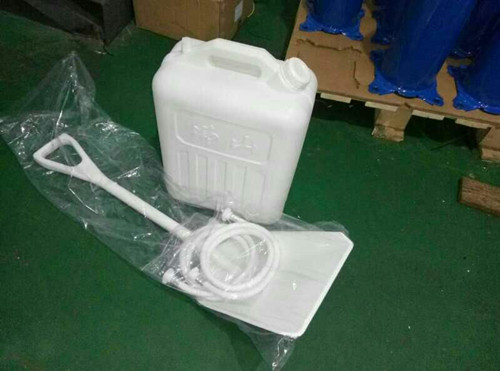

Ice scoop 1piece, water pipe 2piece,brine drum 1piece |
